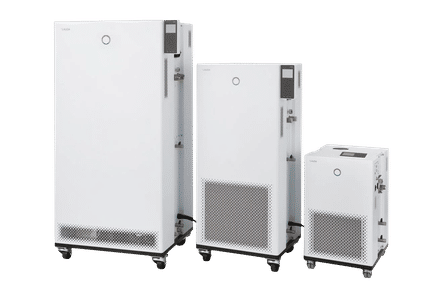

Integral process thermostats

We have technically redeveloped the powerful process thermostats of the Integral line and taken them into the digital age. The models in the T, XT and P series feature an intuitive operating concept that allows monitoring and control via integrated web browser.

The LAUDA Integral T process thermostats provide effective control of external temperature control processes in the temperature range from -30 to 150 °C.

The LAUDA Integral XT process thermostats operate on the flow-through principle with cold oil superimposition and enable the entire temperature range from -90 to 320 °C to be used with a single temperature control medium.

The LAUDA Integral P process thermostats operate on the principle of pressure superposition in the temperature range from -40 to 140 °C and ensure professional temperature control for realistic test processes.

Intuitive interface concept for maximum connectivity

The new Integral process thermostats feature a modular and future-proof interface concept for maximum connectivity of your processes. The devices are equipped as standard with interfaces such as Ethernet, USB or Pt 100. Additional interfaces and communication protocols can easily be added via modules. This allows Integral thermostats to be flexibly integrated in various communication scenarios.

Integral process thermostats – Ready for the digital future

With the new Integral devices, LAUDA is driving forward the networking of temperature control technology. As the first series device in the history of LAUDA, the process thermostats have an integrated web server. This allows the devices to be integrated in existing company networks and therefore monitored and controlled via PC, or with mobile devices like a tablet or smartphone, if desired. The devices can be installed and operated in separate locations, if required. This enables location-independent monitoring and control. The thermostats can also be easily controlled via a modern TFT display directly on the device.

LAUDA Integral process thermostats reliably heat and cool in a wide range of applications across various industries, including the food, pharmaceutical, biotech, and chemical industries.
