Layered graphene sheets could solve hydrogen storage issues

19-Mar-2010 - USA

graphene - carbon formed into sheets a single atom thick - now appears to be a promising base material for capturing hydrogen, according to recent research at the National Institute of Standards and Technology (NIST) and the University of Pennsylvania. The findings suggest stacks of graphene layers could potentially store hydrogen safely for use in fuel cells and other applications.

NIST

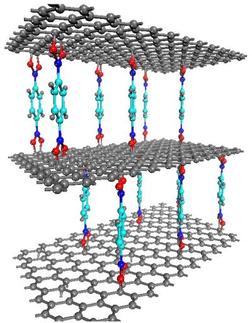

A graphene-oxide framework (GOF) is formed of layers of graphene connected by boron-carboxylic“pillars. ” GOFs such as this one are just beginning to be explored as a potential storage medium for hydrogen and other gases.

Graphene has become something of a celebrity material in recent years due to its conductive, thermal and optical properties, which could make it useful in a range of sensors and semiconductor devices. The material does not store hydrogen well in its original form, according to a team of scientists studying it at the NIST Center for Neutron Research. But if oxidized graphene sheets are stacked atop one another like the decks of a multilevel parking lot, connected by molecules that both link the layers to one another and maintain space between them, the resulting graphene-oxide framework (GOF) can accumulate hydrogen in greater quantities.

Inspired to create GOFs by the metal-organic frameworks that are also under scrutiny for hydrogen storage, the team is just beginning to uncover the new structures' properties. "No one else has ever made GOFs, to the best of our knowledge," says NIST theorist Taner Yildirim. "What we have found so far, though, indicates GOFs can hold at least a hundred times more hydrogen molecules than ordinary graphene oxide does. The easy synthesis, low cost and non-toxicity of graphene make this material a promising candidate for gas storage applications."

The GOFs can retain 1 percent of their weight in hydrogen at a temperature of 77 degrees Kelvin and ordinary atmospheric pressure - roughly comparable to the 1.2 percent that some well-studied metal-organic frameworks can hold, Yildirim says.

Another of the team's potentially useful discoveries is the unusual relationship that GOFs exhibit between temperature and hydrogen absorption. In most storage materials, the lower the temperature, the more hydrogen uptake normally occurs. However, the team discovered that GOFs behave quite differently. Although a GOF can absorb hydrogen, it does not take in significant amounts at below 50 Kelvin (-223 degrees Celsius). Moreover, it does not release any hydrogen below this "blocking temperature" - suggesting that, with further research, GOFs might be used both to store hydrogen and to release it when it is needed, a fundamental requirement in fuel cell applications.

Some of the GOFs' capabilities are due to the linking molecules themselves. The molecules the team used are all benzene-boronic acids that interact strongly with hydrogen in their own right. But by keeping several angstroms of space between the graphene layers - akin to the way pillars hold up a ceiling - they also increase the available surface area of each layer, giving it more spots for the hydrogen to latch on.

According to the team, GOFs will likely perform even better once the team explores their parameters in more detail. "We are going to try to optimize the performance of the GOFs and explore other linking molecules as well," says Jacob Burress, also of NIST. "We want to explore the unusual temperature dependence of absorption kinetics, as well as whether they might be useful for capturing greenhouse gases such as carbon dioxide and toxins like ammonia."
